HAI Omni Pro II — omni-pca

In Home Assistant

One device per panel. Typed entities for every named object the controller knows about — alarm areas, lights and outputs, binary zones with bypass, thermostats with HVAC modes, programs and panel-button macros, plus a single event entity that relays the panel’s typed push-event stream into HA automations. Push updates arrive within one TCP round-trip; a 30-second poll backstops anything that didn’t push.

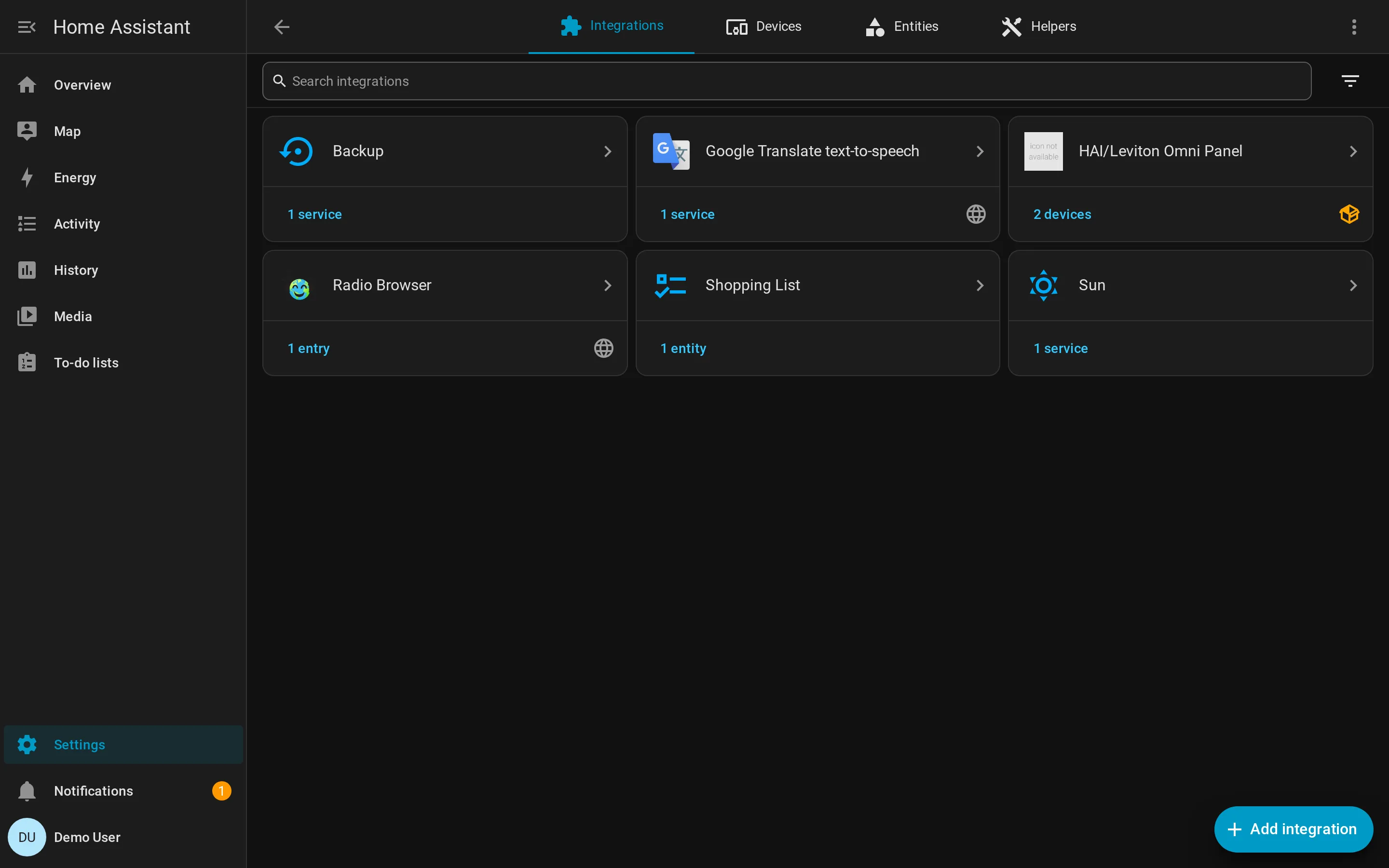

Discoverable in the integrations list →

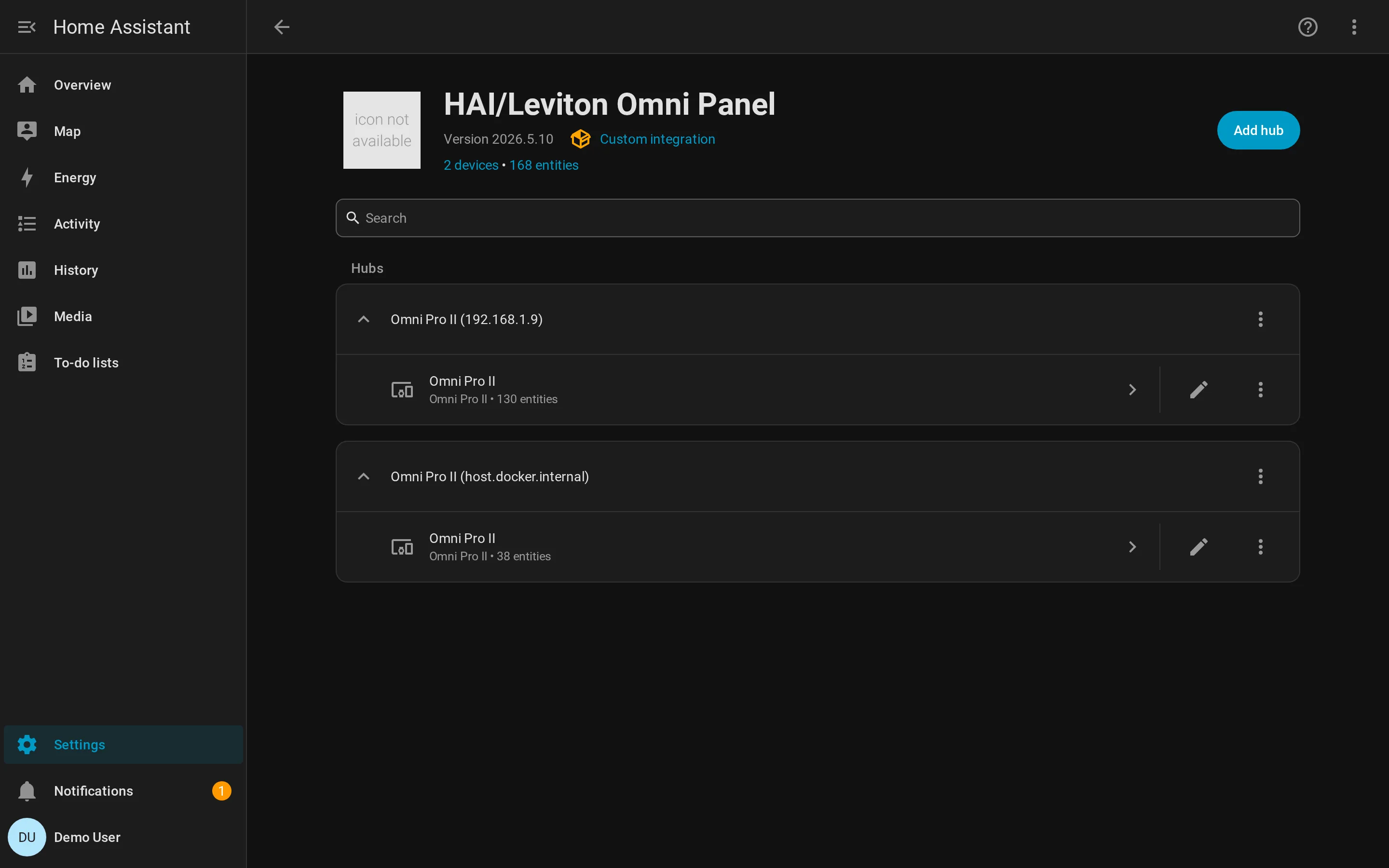

Entity catalogue · 8 platforms →

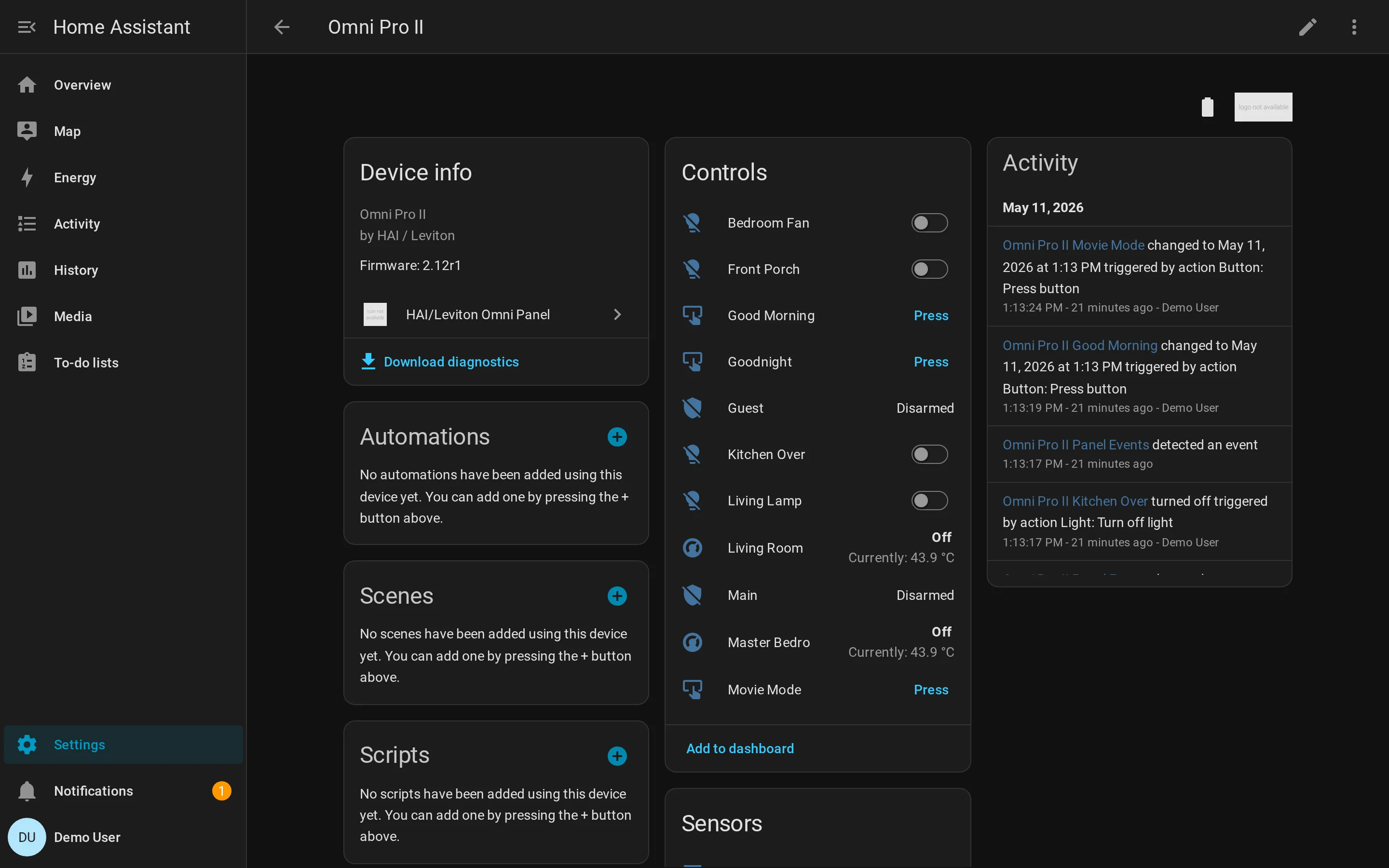

Per-device controls grid →

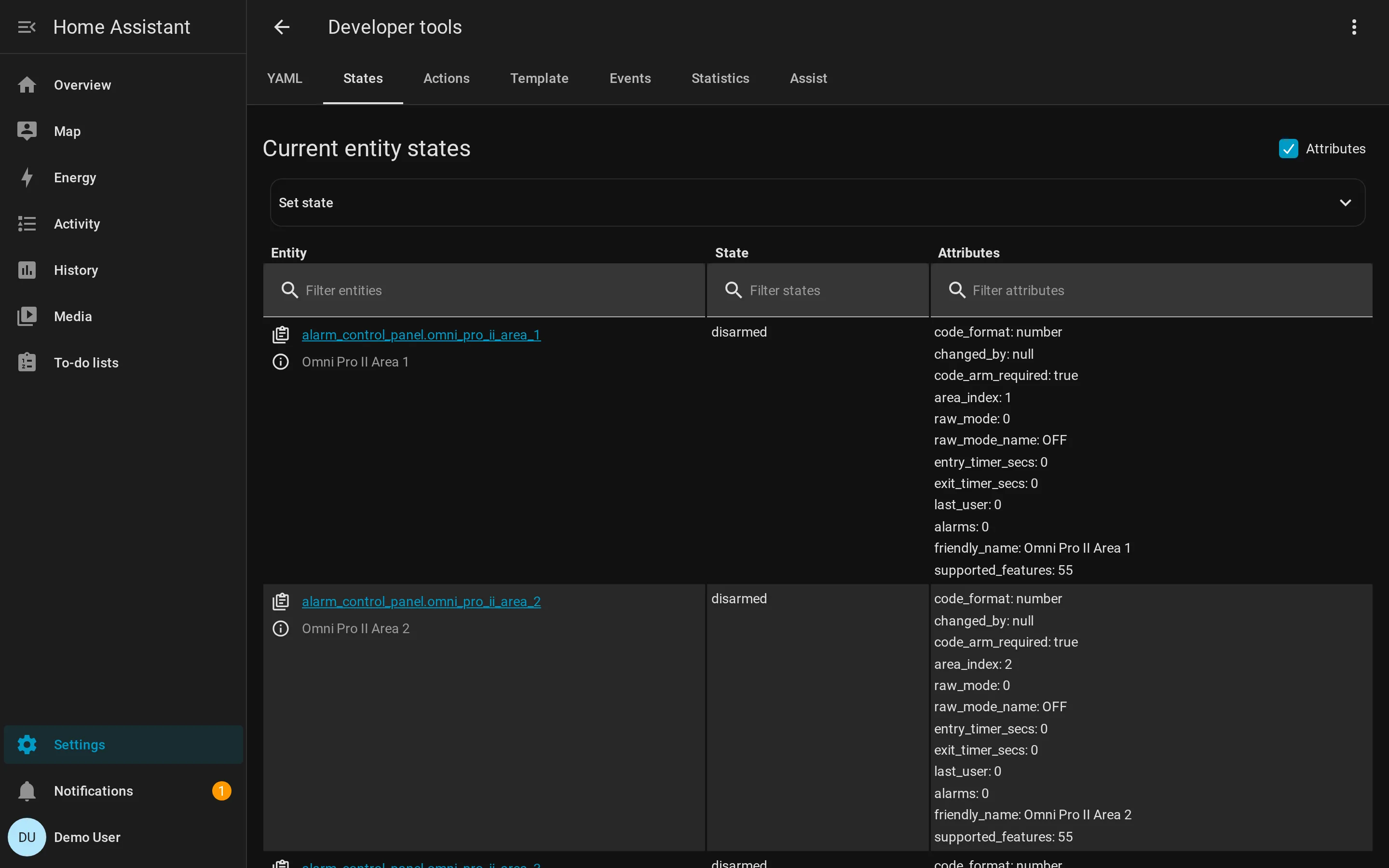

Real entity state from the panel →

In Python

The library underneath is intentionally async-first and typed end-to-end:

import asyncio
from omni_pca import OmniClient

async def main() -> None:
    async with OmniClient(
        host="192.168.1.9",
        port=4369,
        controller_key=bytes.fromhex("6ba7b4e9b4656de3cd7edd4c650cdb09"),
    ) as panel:
        info = await panel.get_system_information()
        print(info.model_name, info.firmware_version)

        async for event in panel.events():
            print(event)   # ZoneStateChanged, ArmingChanged, AlarmActivated, …

asyncio.run(main())

What you get from the library:

• Full opcode coverage — 104 v1 + 83 v2 message types, byte-exact to the decompiled C# enums.
• 21 typed status/properties dataclasses, 26 typed SystemEvent subclasses, no untyped bytes leaking past the framing layer.
• Stateful mock controller for offline development. The same MockPanel class powers the integration tests and the docker dev stack.
• Async-first — OmniClient is an async context manager, events() is an async iterator, no callback soup.

Two non-public protocol quirks

The wire protocol — as actually implemented in PC Access 3.17 — has two quirks that public Omni-Link clients miss. Without them the panel will accept your TCP connection, complete the unencrypted handshake, and then silently drop you on the first encrypted message:

1. Session key XOR mix. The AES-128 session key is not the panel’s ControllerKey directly. Bytes [11..16) of the ControllerKey are XORed with a 5-byte SessionID nonce that the controller sends in ControllerAckNewSession. Bytes [0..11) are the ControllerKey verbatim.
2. Per-block XOR pre-whitening before AES. Before each 16-byte block is AES-encrypted, its first two bytes are XORed with the packet’s 16-bit sequence number (high byte first). The same mask is applied to every block of the packet. Decrypt reverses it.

Both are unambiguous in the decompiled C# (clsOmniLinkConnection.cs:1886-1892 and :396-401). Neither appears in jomnilinkII, pyomnilink, or any third-party Omni-Link writeup we found. See the quirks explainer for why they exist and the full visual breakdown.

Read the in-depth content

Install in Home Assistant Two install paths (HACS + manual), config-flow walkthrough, common errors, reauth flow.

Spin up the dev stack Real HA + a faithful mock panel in Docker. Click around the integration without touching real hardware.

Omni-Link II protocol reference Byte-level handshake diagrams, every packet type visualized, key derivation, steady-state encryption.

The two non-public quirks, in depth Why the session key isn't the ControllerKey, and the per-block whitening that breaks every naive AES-ECB client.

.pca file format Borland-Pascal LCG XOR cipher, three keys, and the on-disk layout so you can decode your config without PC Access.

The Journey Chronological retrospective from a pile of binaries off a Mac volume to 351 passing tests in a couple of days.
